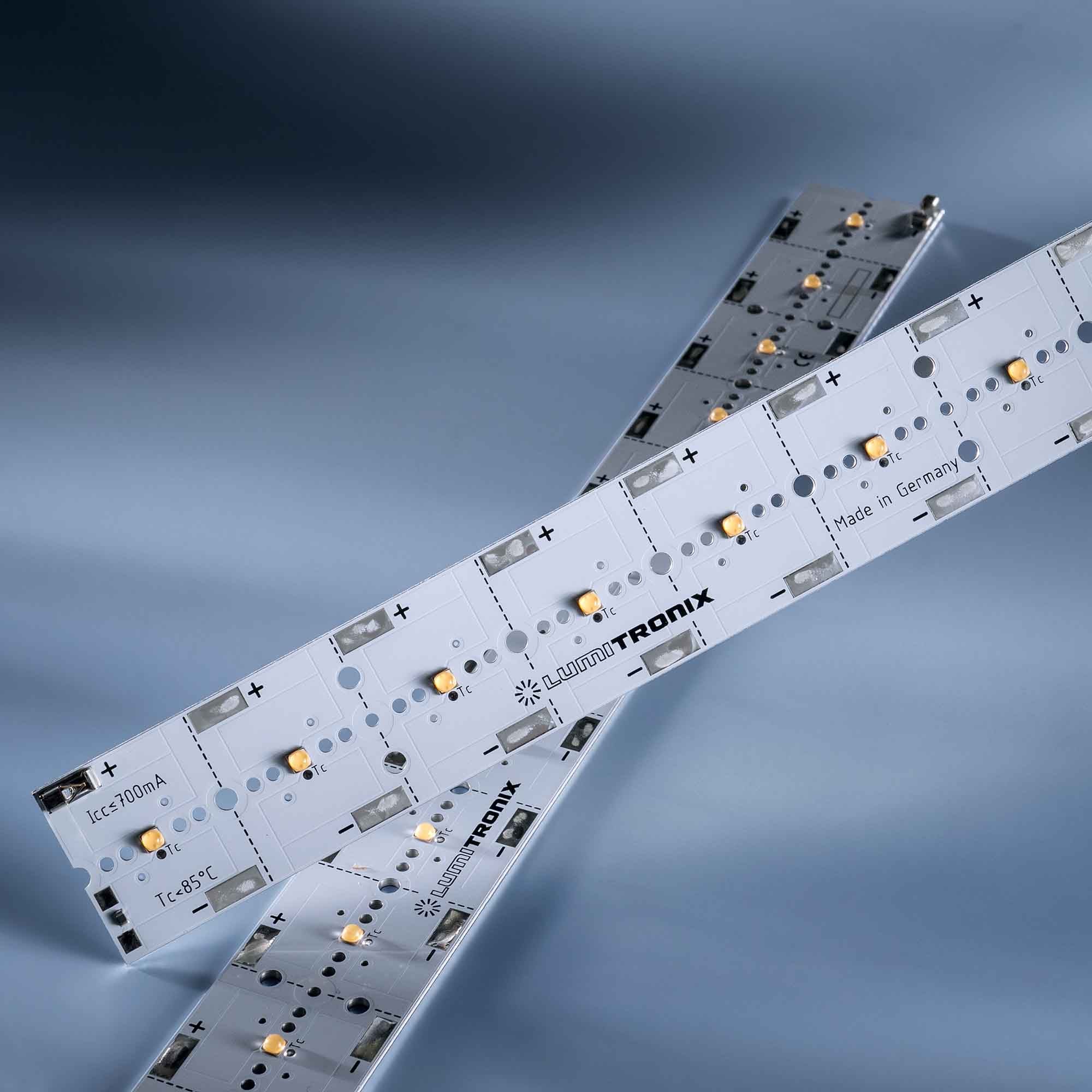

PowerBar V3 Osram Oslon Square LED Module Aluminium Cold White 5700K CRI70 3250lm 12 LEDs 700mA 25.55W 28.6cm
- High-power LED module on aluminium core for maximum light per square metre
- Luminous flux 3250 lm (11375 lm/m) at 5700K, CRI 70
- Power consumption 25.55 W at an efficacy of 127 lm/W
- 12 brand LEDs from ams OSRAM
- Beam angle 90°
- Dimensions 286 x 28.5 x 4.5 mm
- Made in Germany with brand LEDs, automated placement and full electrical testing
- 5 years warranty
PowerBar V3 Osram Oslon Square LED Module Aluminium Cold White 5700K CRI70 3250lm 12 LEDs 700mA 25.55W 28.6cm

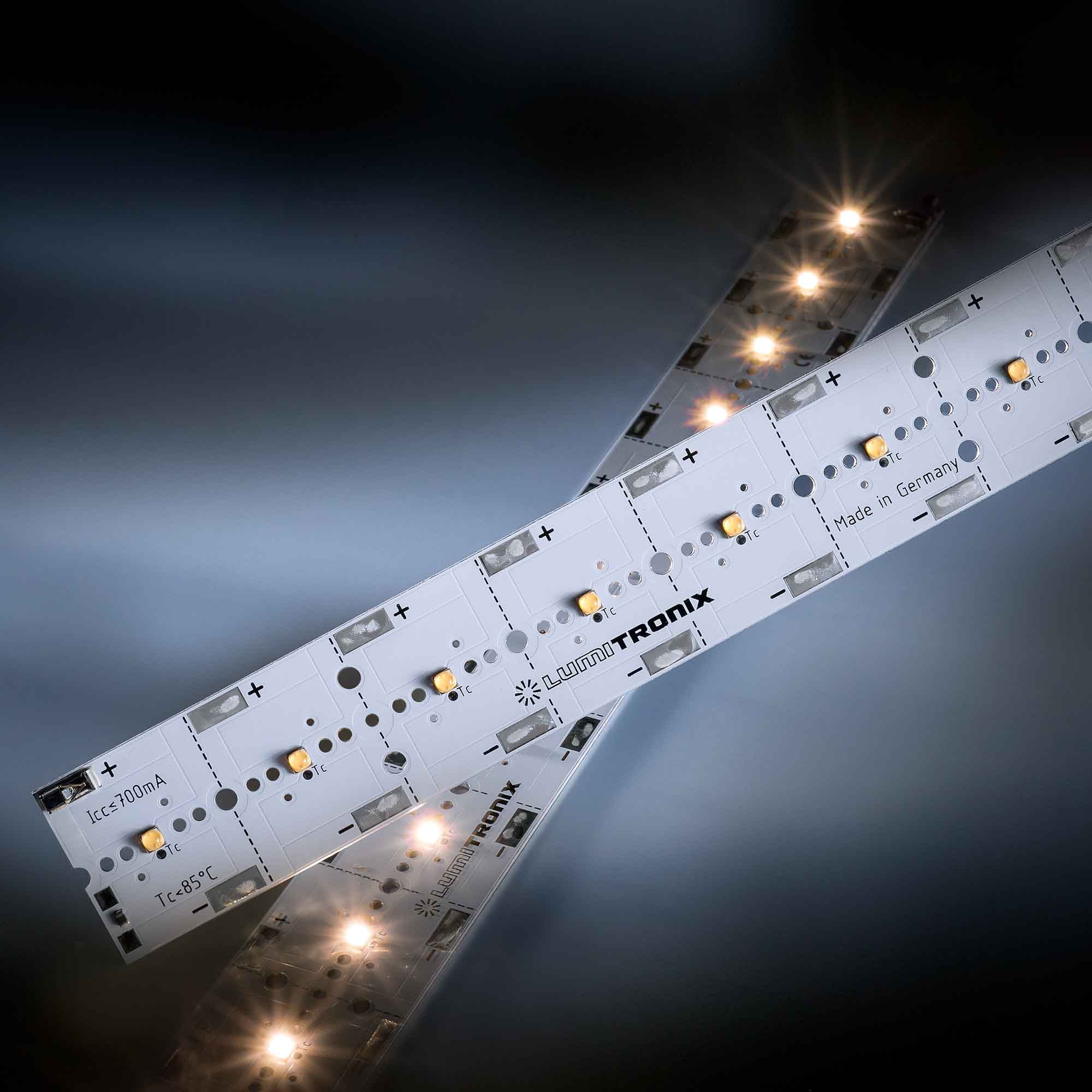

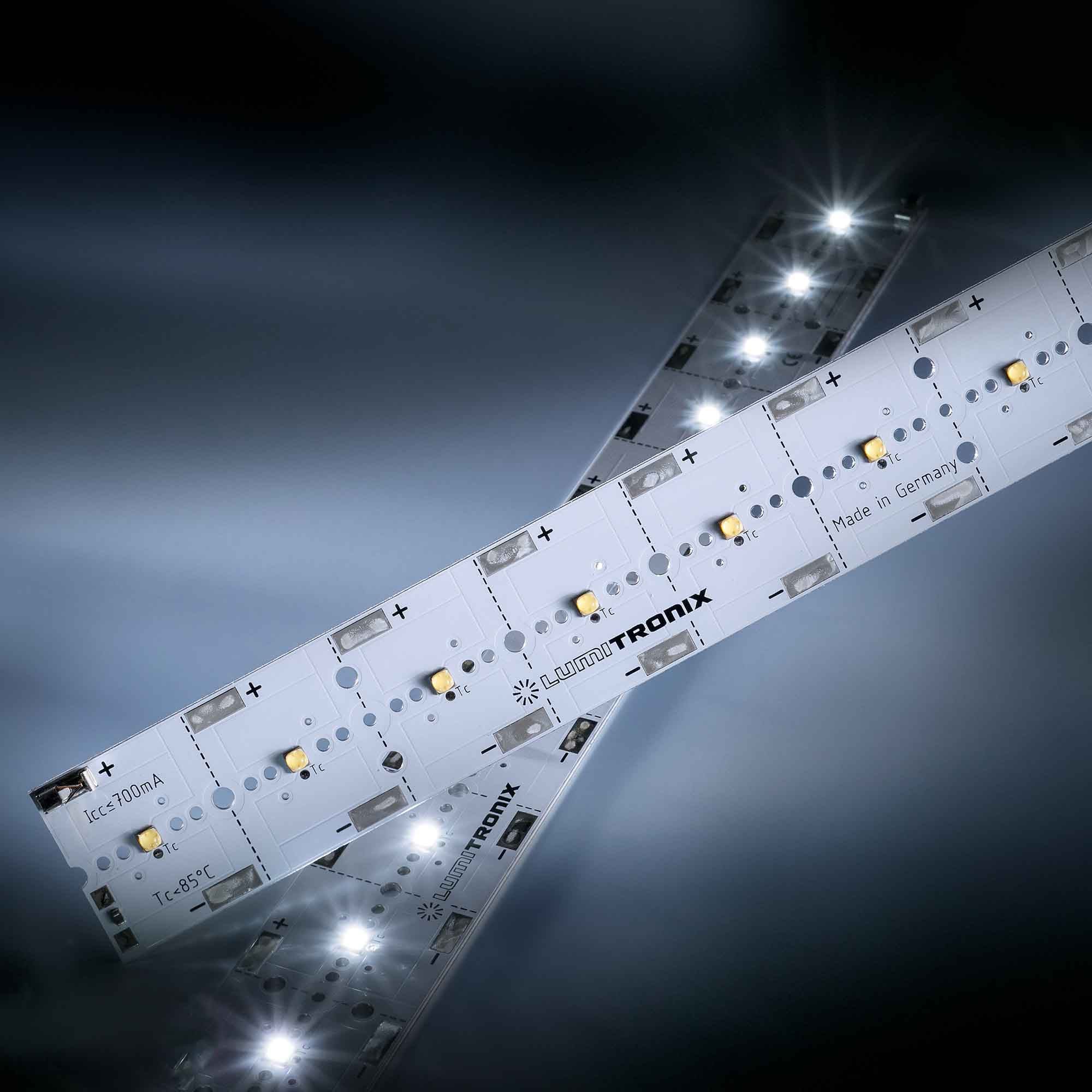

This product is a high-power LED module on an aluminium circuit board, equipped with 12 LEDs from ams OSRAM (Oslon Square series) and delivering 3250 lm at 5700K with CRI 70, 25.55 W of power consumption and an efficacy of 127 lm/W.
The PowerBar V3 is our platform for applications that need a lot of light per square metre: plant growth, industrial and machine lighting, medical devices, architectural floodlighting and high-output spotlights. The metal-core board is the key component here. It carries the heat of twelve high-power LEDs straight into the heat sink, which keeps the junction temperature low enough to drive them at 700 mA and beyond without sacrificing lifetime. An NTC resistor is fitted on the board so that an external control unit can monitor the temperature.
The bar consists of twelve connected segments that can be separated with a saw, so a shorter module can be produced from stock without a custom order. Terminals on the first and last segment allow a solderless connection. Mounting holes for lenses are part of the board layout, and a wide range of LEDiL and Carclo optics is compatible, which turns the same module into a narrow spot or a wide flood depending on the optic chosen.

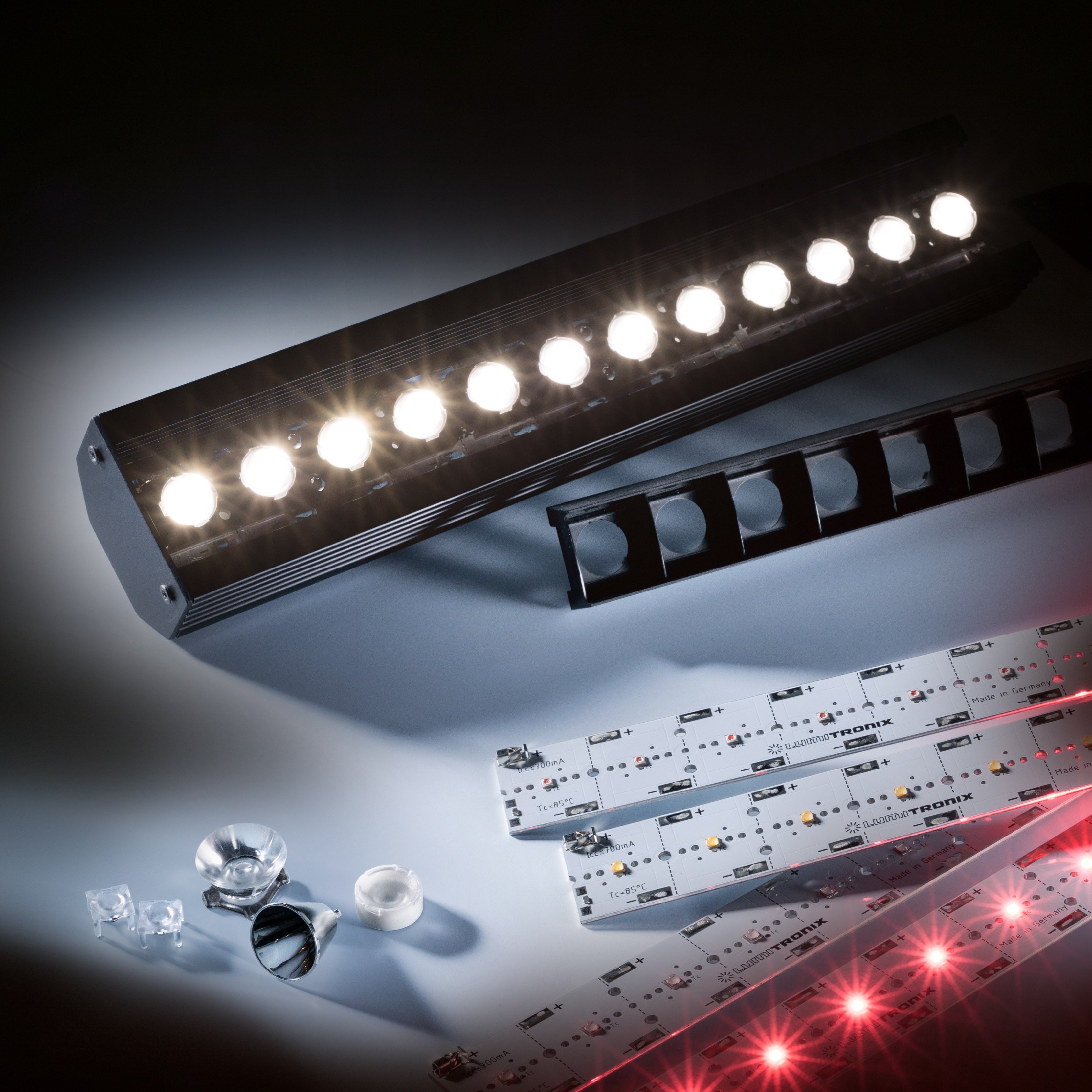

Matching accessories are available for the complete system, including heat sink, thermally conductive adhesive pad, mounting clips, rod lenses and covers, so a finished luminaire can be assembled from stock components.
Why we build with ams OSRAM LEDs
ams OSRAM is a European semiconductor manufacturer with a long track record in high-power LEDs, and the OSLON family is one of the most widely used high-power platforms in professional lighting. OSLON packages are built for high drive currents and demanding thermal conditions, with ceramic substrates and reliability data from automotive and industrial qualification programmes. That makes them a natural choice wherever a lot of optical power has to come out of a very small emitting surface.
The PowerBar V3 comes with a 5-year warranty. A warranty period of that length is only possible because the components, the thermal design and the production process are under our own control, and it gives you real investment security on a component that will be built into an installation.
Made in Germany – for reliable quality
This Lumistrips light engine is developed and manufactured at our production site in Germany. The PCB is assembled on controlled SMD equipment and the finished boards are visually inspected and electrically tested. We use specified, traceable LED components and defined production parameters so that current, voltage, light output and colour remain reproducible from batch to batch.
The difference from generic LED tape or anonymous modules is control of the complete light engine: copper layout, soldering quality, LED spacing, component selection and thermal path are defined together. That gives luminaire makers a more predictable component for continuous operation, easier qualification and repeat orders that behave like the original build.
Technical features
- 12 LEDs from ams OSRAM (Oslon Square)
- Colour temperature: 5700K (Cold White)
- Colour rendering index: CRI 70
- Luminous flux: 3250 lm (typical)
- Luminous flux per metre: 11375 lm/m
- Power consumption: 25.55 W
- Luminous efficacy: 127 lm/W
- Operating point: 700 mA at 36.5 V
- Beam angle: 90°
- Board type: Rigid
- Dimensions: 286 x 28.5 x 4.5 mm
- Dimmable
- Rated lifetime: 60000 h
- Warranty: 5 years
Applications
- Spotlights and downlights
- Industrial and machine lighting
- Shop and accent lighting
- Architectural lighting
- Custom luminaire development
| SKU | 42304 |
|---|---|
| Color | Cold White |
| Color Temperature | 5700K |
| Color Rendering Index | 70 |
| Luminous Flux per meter | 11375 |
| Bright like (W) | 217 |
| Luminous Flux Typ (lm) | 3250 |
| Efficacy (lm per W) | 127 |
| Power (W) | 25.55 |
| Dimmable | Dimmable |
| Viewing Angle | 90° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 42304 |
| Product Family | PowerBar V3 LED Strip |
| Strip Type | Rigid |
| LEDs number per sales unit | 12 |
| Dimensions | 286 x 28.5 x 4.5 mm |
| Dimensions: Length (cm) | 28.6 |
| Dimensions: Width (mm) | 28.5 |
| Dimensions: Height (mm) | 4.5 |
| Brand | Lumistrips |
| Forward Voltage Typ (V) | 36.5 |
