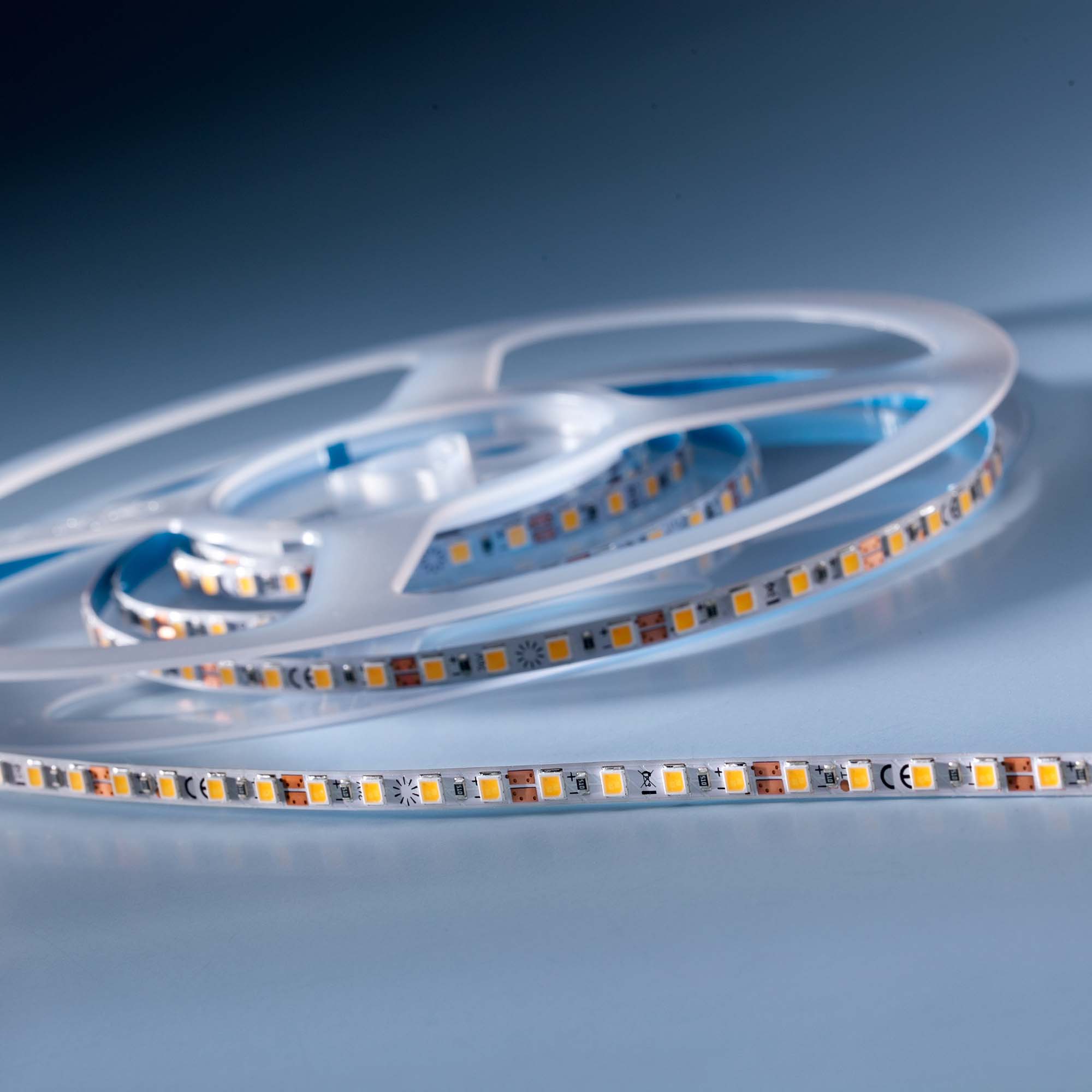

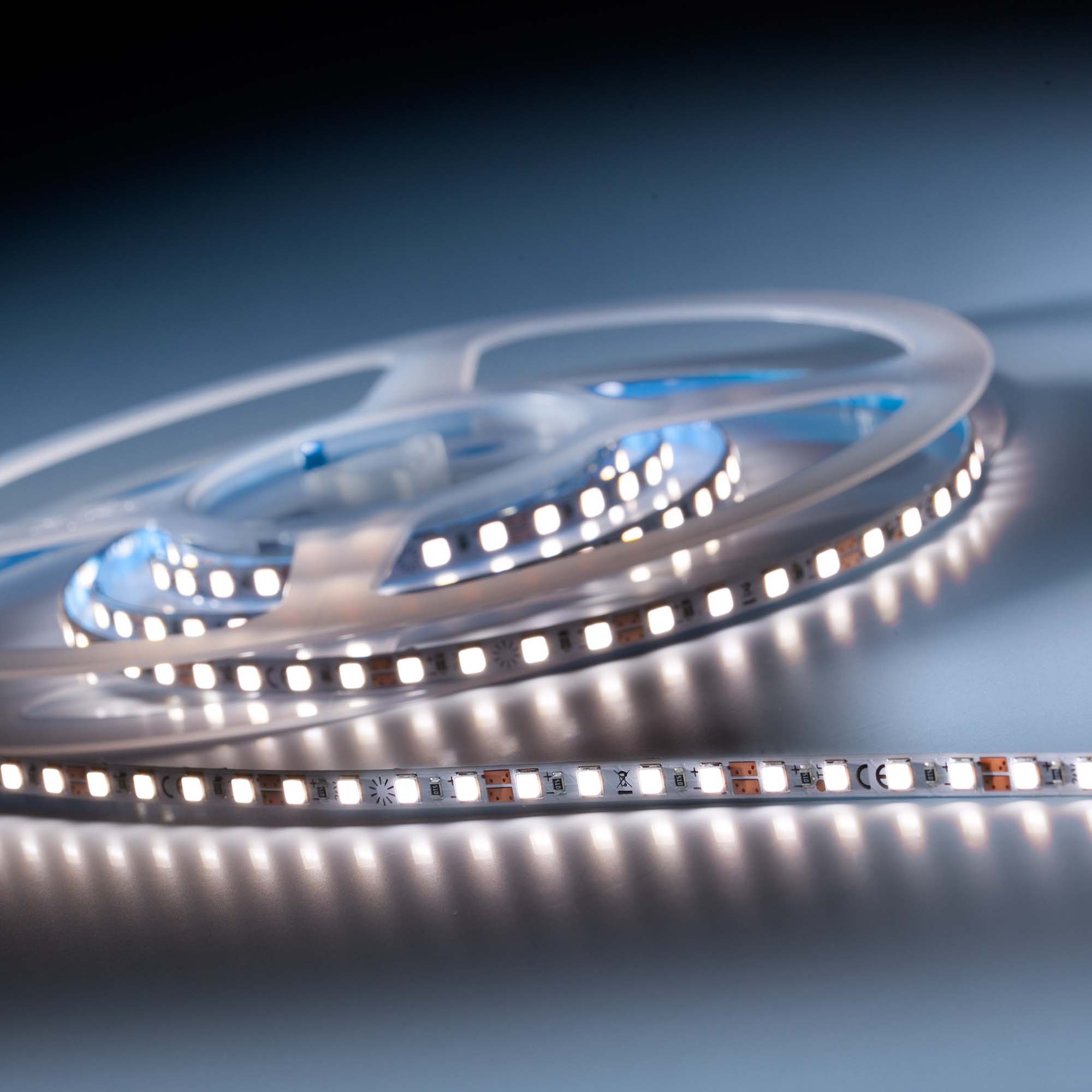

SlimFlex 240 Pro Nichia LED Strip 0.19" wide neutral white CRI90 4000K 4240lm 24V 36 LEDs/ft 7ft/2m reel (647lm & 5.5W/ft)
- Flexible LED Strip with CRI90, for professional use that requires very good color rendering
- Recommended for work, task & commercial lighting (647 lm/ft)
- Can be installed in the narrowest of places due to 5mm width
The SlimFlex lights with a clean, focused pure white light with 4000K, that can go well in studies, garages and kitchens. Compared to the warm light that evokes relaxation, pure white makes you focused and alert. For business applications this is great for office spaces, grocery stores, hospitals, classrooms and jewelry boutiques, especially those selling diamonds or silver.
With the SlimFlex you will have an intense brightness of 647 lumens per foot that can be used for general lighting, task lighting or luminaire construction. You can use the strip to create lines of light via cove lights that are bright enough for general room illumination in your home. We recommend 3 feet of cove light for each 21 square feet of room space, with maximum height 10 feet. For a living room 215 square feet you would need 35 feet of Lumistrips. Table top lighting in your kitchen is also a very good application for this strip
For business applications the strip can be used for general or task lighting in office spaces with height up to 4 meters, with the strip illuminating directly downwards from inside a fixture or recessed luminum profile with glass cover. A combination with other light sources, such as spotlights, might be needed. Other applications include showcase lighting or task lighting.
Product description
The SlimFlex Nichia LED strip is only 5mm wide and make possible projects that cannot be done with other LED strips. The special dimensions team up with high performance, the SlimFlex strip being equipped with the best mid-power LEDs on the market: Nichia 757G series. Lifetime, light output and efficacy are all superlative and translate directly into strip's attributes.
The SlimFlex strip is 6.56ft long and has 240 Nichia 757G LEDs. The narrow width of only 0.19" make the SlimFlex extremely versatile. The typical CRI of >90 provides natural colour rendering. As usual, our LED strips with Nichia LEDs have a 5 year warranty. This long warranty proves the “premium quality" of our products, protects you from unwanted additional costs and therefore provides a valuable investment security.
The flexible strip will directly or indirectly light virtually any surface or shape. With the flexible board, even corners and curves aren’t a problem. The low installation height and the self-adhesive backing make installation easy.
The maximum length per power supply is 6.56ft. Longer one piece sections can be implemented with additional feeds.
Features
- High CRI >90
- White 4000K
- Ultra bright: 647 lm per foot (2120 lm per meter)
- Can be split every 1.29"
- Width: 0.19"
- Sold in 2m (6.56 ft) rolls
- Long life and 5 year warranty
- Quality: LEDs by market leader Nichia
- Very efficient and bright
- Dimensions (LxWxH): 6.56ftx0.19"x0.039"
- Nichia binning (3 step MacAdam) for consistent white light
Applications:
- The construction of linear and thin luminaires
- General lighting from coves or narrow lines of light in the home, shops, offices, TV studios, cabinets or medical clinics
| SKU | 56026 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Neutral White |
| Color Temperature | 4000K |
| Color Rendering Index | 90 |
| Luminous Flux per meter | 2120 |
| Bright like (W) | 177 |
| Luminous Flux Typ (lm) | 4240 |
| Efficacy (lm per W) | 118 |
| Energy Class 2022 | E |
| Power (W) | 36 |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Forward Current Max | 1500 |
| Manufacturer Product Code | 56026 |
| Product Family | SlimFlex3090 |
| Strip Type | Flexible |
| Strip LEDs per meter | 48 |
| LEDs number per sales unit | 240 |
| Dimensions | 2000x5x1 |
| Dimensions: Length (cm) | 200 |
| Dimensions: Width (mm) | 5 |
| Dimensions: Height (mm) | 1 |
| Can be cut at (mm) | 33 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127455565 |
| Forward Voltage Typ (V) | 24 |
| Availability beyond shown stock: | NO |
