Aventrix 4x4 V2 LED Module 16x Nichia 757 LEDs 4000K CRI 80 1270lm 7.8W
Aventrix 4x4 V2 LED Module 16x Nichia 757 LEDs 4000K CRI 80

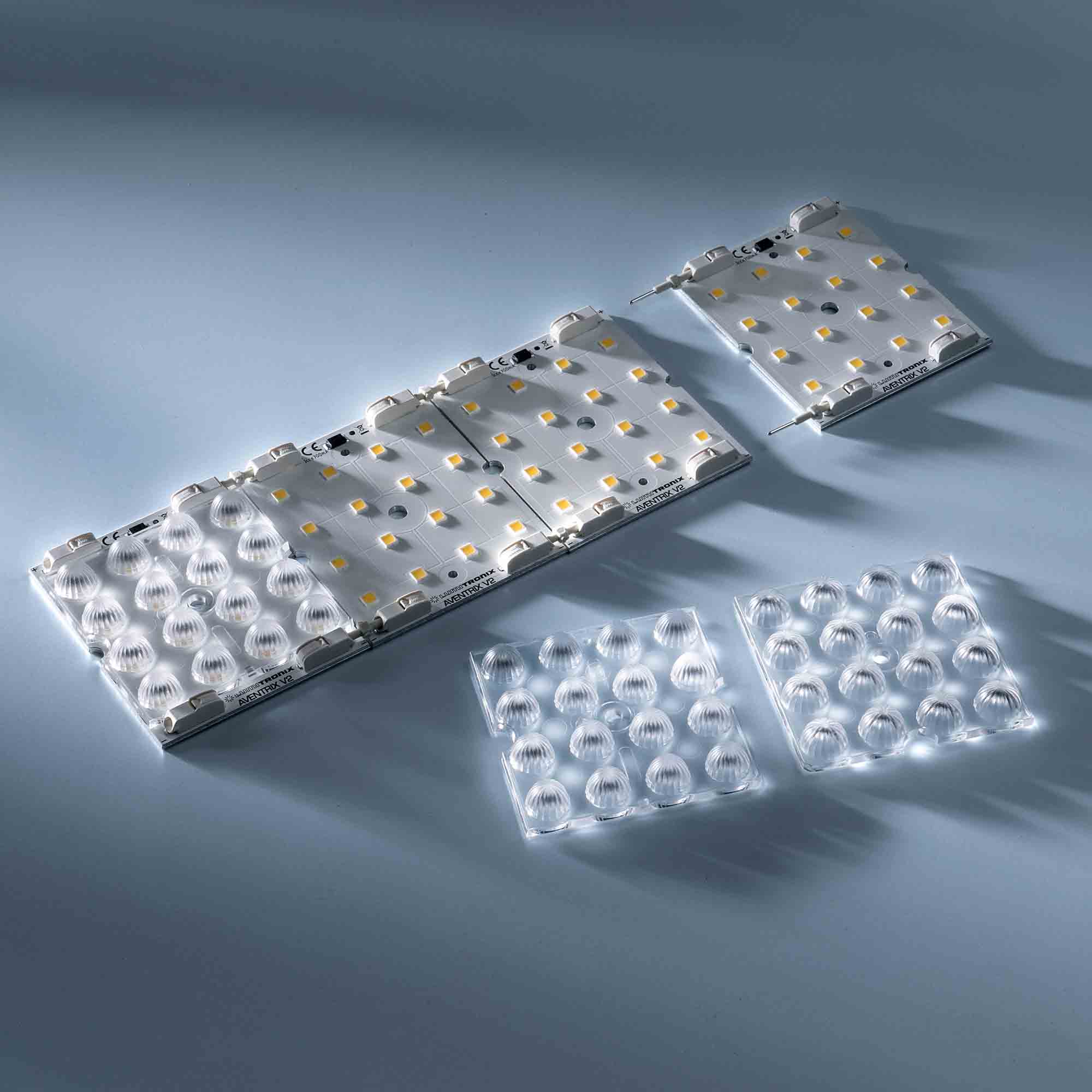

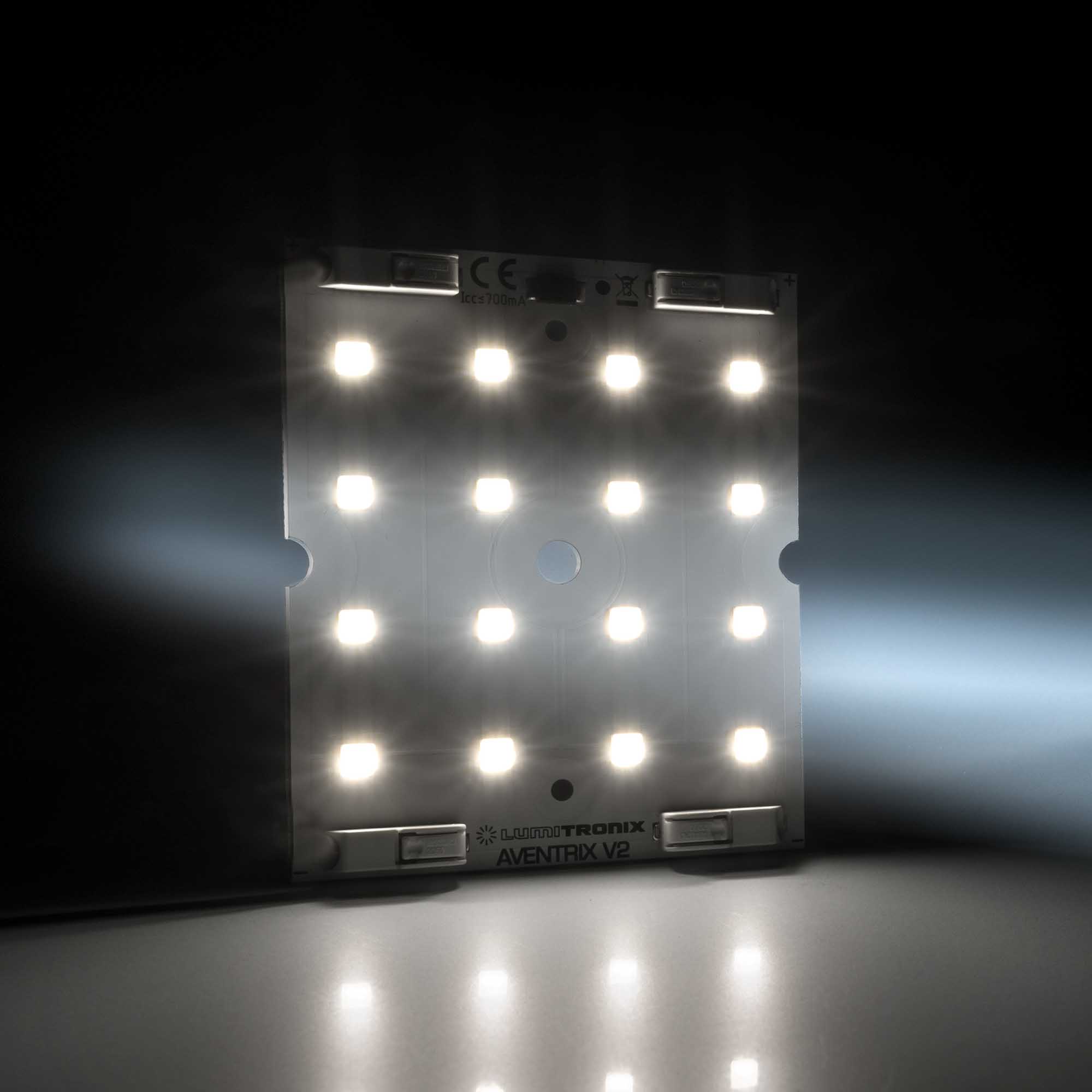

The latest member of the Aventrix module family is called 4x4 V2 and provides brilliant light with 16 Nichia LEDs of the 757 series on its 50 x 59.5 mm board. With two connecting elements from the Wago 2060 series, modules can be easily connected to each other - with the same LED spacing.
Aventrix - Powerful LED modules for road, tunnel and hall lighting
The Aventrix LED modules are specially developed for the requirements of inner-city areas, for the lighting of traffic routes and large halls. Up to 7785 lumens of homogeneous light per LED module illustrate the enormous performance. With their energy efficiency of up to 163 lm/W (Aventrix 4x4 V2), the Aventrix modules are particularly energy-saving, environmentally friendly and economical. Thanks to different optics, the light can be directed precisely to the area to be illuminated. Unwanted stray light and energy losses are avoided. The pleasant colour temperature of 4000 K guarantees an optimum view and lighting situation.
The Aventrix LED modules are equipped with the latest generation of highly efficient LEDs from the market leader Nichia. The 3-step MacAdam binning guarantees uniform, homogeneous light. In order to dissipate the heat of the up to 7785 lm luminous modules particularly well, IMS printed circuit boards with an aluminium core were used in production. These guarantee excellent thermal management of the light source with 0.9 K/W. Four module sizes (50 x 60 mm, 65 x 60 mm, 120 x 120 mm, 240 x 60 mm) and simple connection of the various modules using WAGO PCB terminals make Aventrix a versatile LED system for modular luminaire construction. The modules can be quickly combined to achieve the desired luminosity. The dimmable modules operated with constant current have ESD protection and offer reliable protection against mains transients of up to 4000 V.
Features
- Nichia 757 LEDs
- 5 years warranty
- Improved heat and light distribution
- Compatible with Ledil lenses of the Stradella series
- Dimmable
- More compact design: 50 x 60 x 6 mm
- Higher efficiency: 163 lm/W
- More design possibilities due to new arrangement of connection poles
- Operation with constant current
- High degree of application possibilities
- Ideal for modular luminaire construction
- High CRI value of 80
- Made in Germany
| SKU | 31989 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Neutral White |
| Color Temperature | 4000K |
| Color Rendering Index | 80 |
| Luminous Flux Typ (lm) | 1270 |
| Efficacy (lm per W) | 163 |
| Energy Class 2022 | C |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 31989 |
| Product Family | Aventrix Nichia LED Module |
| Strip Type | Rigid |
| LEDs number per sales unit | 16 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127453271 |
| Forward Voltage Typ (V) | 22.3 |
| Availability beyond shown stock: | YES |
